Copper Nickel - FLANGES

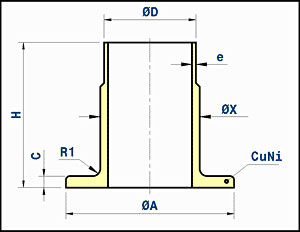

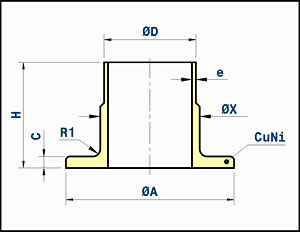

Composite Weld Neck-Inner Flange-DIN 86037/EEMUA145 In Copper Nickel

inner flange - 10 bar - DIN 86037

inner flange - 14 bar - DIN 86037

short inner flange - 16 bar - EEMUA 145

short inner flange - 20 bar - EEMUA 145

long inner flange - 16 bar - EEMUA 145

long inner flange - 20 bar - EEMUA 145

inner flange - 10 bar - DIN 86037

Outside diameter of pipe		Wall						Theo.
ØD		thickness	ØA	H	C	ØX	R1	weight
nominal inch	actual mm	e mm	mm	mm	mm	mm	mm	Kg/piece
0.75	25	1.5	58	40	5	27	3	0.17
1	30	1.5	68	40	5	32	4	0.24
1.25	38	1.5	78	40	5	40	4	0.26
1.5	44.5	1.5	88	45	6	46.5	4	0.42
2	57	1.5	102	45	6	59	5	0.53
2.5	76.1	2	122	45	6	78	5	0.64
3	88.9	2	138	50	7	91	5	0.86
4	108	2.5	158	50	7	110	5	1.10
5	133	2.5	188	50	7	135.5	5	1.50
6	159	2.5	212	50	9	161.5	5	2.00
7	193.7	2.5	242	50	9	197	5	2.30
8	219.1	3	268	50	9	222	5	2.70
10	267	3	320	50	9	270	5	3.40
12	323.9	4	370	50	11	327	7	4.60
14	368	4	430	50	11	371	7	6.20
16	419.1	4	482	50	12	422	7	7.50
18	457.2	4	530	50	12	460	7	9.00
20	508	4.5	585	50	12	511	7	10.65
24	610	5	685	60	14	613	9	14.90

---

»inner flange - 14 bar - DIN 86037

Outside diameter of pipe		Wall						Theo.
ØD		thickness	ØA	H	C	ØX	R1	weight
nominal inch	actual mm	e mm	mm	mm	mm	mm	mm	Kg/piece
3	88.9	2.5	138	50	7	91	5	0.90
5	133	3	188	50	7	135.5	5	1.55
6	159	3	212	50	9	161.5	5	2.10
7	193.7	3.5	242	50	9	197	5	2.55
8	219.1	3.5	268	50	9	222	5	2.90
10	267	4	320	50	9	270	5	3.80
12	323.9	5	370	50	11	327	7	5.40
14	368	5.5	430	50	11	371	7	6.95
16	419.1	6	482	50	12	422	7	8.65
18	457.2	6	530	50	12	460	7	10.15
20	508	6.5	585	50	12	511	7	11.90
24	610	8	685	60	14	613	9	17.65

---

» short inner flange - 16 bar - EEMUA 145

Outside diameter of pipe		Wall						Theo.
ØD		thickness	ØA	H	C	ØX	R1	weight
nominal inch	actual mm	e mm	mm	mm	mm	mm	mm	Kg/piece
0.5	16	2	40	35	4	18	2	0.07
0.75	25	2	50	40	5	27	3	0.16
1	30	2.5	60	40	5	32	4	0.20
1.25	38	2.5	70	40	5	40	4	0.25
1.5	44.5	2.5	80	45	6	46.5	4	0.42
2	57	2.5	99	45	6	59	5	0.50
2.5	76.1	2.5	120	45	6	78	5	0.67
3	88.9	2.5	130	50	7	91	5	0.86
4	108	3	158	50	7	110	5	1.18
6	159	3	212	50	9	161.5	5	2.20
8	219.1	4	270	50	9	222	5	3.20
10	267	4.5	320	50	9	270	5	3.90
12	323.9	5.5	370	50	11	327	7	6.50
14	368	6.5	430	50	11	371	7	7.45
16	419.1	7	482	50	12	422	7	9.20
18	457.2	8	530	50	12	460	7	11.45
20	508	8.5	585	50	12	511	7	13.40
24	610	10.5	685	60	14	613	9	20.75
28	711	12	800	60	19	719	9	33.35
32	813	13.5	905	60	20.5	821	9	42.25
36	914	15.5	1000	60	22	922	9	49.35

---

» short inner flange - 20 bar - EEMUA 145

Outside diameter of pipe		Wall						Theo.
ØD		thickness	ØA	H	C	ØX	R1	weight
nominal inch	actual mm	e mm	mm	mm	mm	mm	mm	Kg/piece
0.5	16	2	40	35	4	18	2	0.07
0.75	25	2	50	40	5	27	3	0.16
1	30	2.5	60	40	5	32	4	0.20
1.25	38	2.5	70	40	5	40	4	0.25
1.5	44.5	2.5	80	45	6	46.5	4	0.42
2	57	2.5	99	45	6	59	5	0.50
2.5	76.1	2.5	120	45	6	78	5	0.67
3	88.9	2.5	130	50	7	91	5	0.86
4	108	3	158	50	7	110	5	1.20
6	159	3.5	212	50	9	161.5	5	2.20
8	219.1	4.5	270	50	9	222	5	3.30
10	267	5.5	320	50	9	270	5	4.20
12	323.9	7	370	50	11	327	7	6.80
14	368	8	430	50	11	371	7	8.20
16	419.1	9	482	50	12	422	7	10.35
18	457.2	9.5	530	50	12	460	7	12.40
20	508	11	585	50	12	511	7	15.10
24	610	13	685	60	14	613	9	23.25
28	711	15	800	60	19	719	9	36.80
32	813	17	905	60	20.5	821	9	46.85
36	914	19	1000	60	22	922	9	54.55

» long inner flange - 16 bar - EEMUA 145

Outside diameter of pipe		Wall						Theo.
ØD		thickness	ØA	H	C	ØX	R1	weight
nominal inch	actual mm	e mm	mm	mm	mm	mm	mm	Kg/piece
0.5	16	2	40	51	4	18	2	0.09
0.75	25	2	50	51	5	27	3	0.19
1	30	2.5	60	51	5	32	4	0.23
1.25	38	2.5	70	51	5	40	4	0.29
1.5	44.5	2.5	80	51	6	46.5	4	0.44
2	57	2.5	99	64	6	59	5	0.61
2.5	76.1	2.5	120	64	6	78	5	0.80
3	88.9	2.5	130	64	7	91	5	0.97
4	108	3	158	76	7	110	5	1.50
6	159	3	212	89	9	161.5	5	2.90
8	219.1	4	270	102	9	222	5	5.10
10	267	4.5	320	127	9	270	5	8.90
12	323.9	5.5	370	152	11	327	7	13.80
14	368	6.5	430	152	11	371	7	16.60
16	419.1	7	482	152	12	422	7	20.25
18	457.2	8	530	152	12	460	7	23.60
20	508	8.5	585	152	12	511	7	28.65
24	610	10.5	685	152	14	613	9	39.25
28	711	12	800	190	19	719	9	75.30
32	813	13.5	905	190	20.5	827	9	94.60
36	914	15.5	1000	190	22	922	9	115.55

» long inner flange - 20 bar - EEMUA 145

Outside diameter of pipe		Wall						Theo.
ØD		thickness	ØA	H	C	ØX	R1	weight
nominal inch	actual mm	e mm	mm	mm	mm	mm	mm	Kg/piece
0.5	16	2	40	51	4	18	2	0.09
0.75	25	2	50	51	5	27	3	0.19
1	30	2.5	60	51	5	32	4	0.23
1.25	38	2.5	70	51	5	40	4	0.29
1.5	44.5	2.5	80	51	6	46.5	4	0.44
2	57	2.5	99	64	6	59	5	0.61
2.5	76.1	2.5	120	64	6	78	5	0.80
3	88.9	2.5	130	64	7	91	5	0.97
4	108	3	158	76	7	110	5	1.50
6	159	3.5	212	89	9	161.5	5	2.90
8	219.1	4.5	270	102	9	222	5	5.20
10	267	5.5	320	127	9	270	5	9.80
12	323.9	7	370	152	11	327	7	15.40
14	368	8	430	152	11	371	7	19.00
16	419.1	9	482	152	12	422	7	23.95
18	457.2	9.5	530	152	12	460	7	26.40
20	508	11	585	152	12	511	7	33.85
24	610	13	685	152	14	613	9	45.50
28	711	15	800	190	19	719	9	86.20
32	813	17	905	190	20.5	821	9	100.15
36	914	19	1000	190	22	922	9	131.95
