Copper Nickel - Buttweld Fittings

Equal Tees - DIN 86088 / EEMUA 146 In Copper Nickel

10 bar - DIN 86088

14 bar - DIN 86088

16 bar - EEMUA 146

20 bar - EEMUA 146

10 bar - DIN 86088

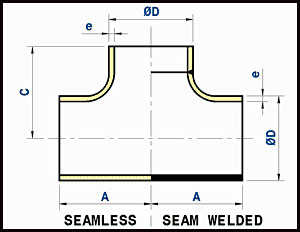

Outside diameter of pipe		Wall			Theoretical
ØD		thickness	A	C	weight
nominal inch	actual mm	e mm	mm	mm	Kg/piece
0.5	20	1	25	25	0.05
0.75	25	1.5	29	29	0.07
1	30	1.5	38	38	0.10
1.25	38	1.5	48	48	0.13
1.5	44.5	1.5	57	57	0.19
2	57	1.5	64	64	0.29
2.5	76.1	2	76	76	0.65
3	88.9	2	86	86	0.82
4	108	2.5	105	105	1.60
6	159	2.5	143	143	4.40
7	193.7	2.5	157	157	4.70
8	219.1	3	178	178	12.8
10	267	3	216	216	16.6
12	323.9	4	254	254	31.5
14	368	4	279	279	39.4
16	419.1	4	305	305	55.1
18	457.2	4	343	343	67.65
20	508	4.5	381	381	92.8
24	610	5	432	432	126.6

---

» 14 bar - DIN 86088

Outside diameter of pipe		Wall			Theoretical
ØD		thickness	A	C	weight
nominal inch	actual mm	e mm	mm	mm	Kg/piece
3	88.9	2.5	86	86	1.03
5	133	2.5	124	124	2.8
5	133	3	124	124	3.36
6	159	3	143	143	5.28
7	193.7	3	157	157	6.6
8	219.1	3.5	178	178	14.95
10	267	4	216	216	22.1
12	323.9	5	254	254	39.4
14	368	5.5	279	279	54.2
16	419.1	6	305	305	82.65
18	457.2	6	343	343	101.5
20	508	6.5	381	381	134.1
24	610	8	432	432	202.6

---

» 16 bar - EEMUA 146

Outside diameter of pipe		Wall			Theoretical
ØD		thickness	A	C	weight
nominal inch	actual mm	e mm	mm	mm	Kg/piece
1	30	2.5	38	38	0.18
1.25	38	2.5	48	48	0.29
1.5	44.5	2.5	57	57	0.43
2	57	2.5	64	64	0.57
2.5	76.1	2.5	76	76	0.88
3	88.9	2.5	86	86	1.16
4	108	3	105	105	2.09
6	159	3	143	143	4.07
8	219.1	4	178	178	17
10	267	4.5	216	216	24.9
12	323.9	5.5	254	254	43.3
14	368	6.5	279	279	64.05
16	419.1	7	305	305	96.4
18	457.2	8	343	343	135.3
20	508	8.5	381	381	175.3
24	610	10.5	432	432	265.9
28	711	12.0	521	521	427
32	813	13.5	597	597	546.1
36	914	15.5	673	673	794.1

---

» 20 bar - EEMUA 146

Outside diameter of pipe		Wall			Theoretical
ØD		thickness	A	C	weight
nominal inch	actual mm	e mm	mm	mm	Kg/piece
1	30	2.5	38	38	0.18
1.25	38	2.5	48	48	0.29
1.5	44.5	2.5	57	57	0.43
2	57	2.5	64	64	0.57
2.5	76	2.5	76	76	0.88
3	89	2.5	86	86	1.16
4	108	3	105	105	2.09
6	159	3.5	143	143	4.74
8	219	4.5	178	178	19.1
10	267	5.5	216	216	30.4
12	324	7	254	254	55.1
14	368	8	279	279	78.8
16	419	9	305	305	124
18	457	9.5	343	343	160.65
20	508	11	381	381	226.9
24	610	13	432	432	329.2
28	711	15	521	521	533.75
32	813	17	597	597	687.7
36	914	19	673	673	973.4
