COPPER NICKEL FORGED AND MACHINED FITTINGS

Olets In Copper Nickel

weldolets

sockolets

threadolets

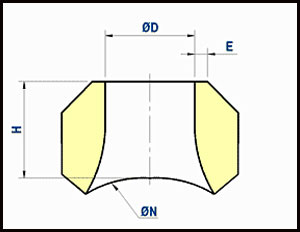

weldolets

Outside diameter of branch pipe		Outside diameter of header					Theoretical
ØD		ØN		E		H	weight
nominal inch	actual mm	nominal inch	actual mm	16 Bar mm	20 Bar mm	mm	Kg/piece

0.5	16	0.5 to 1.5	16 to 44.5	2	2	19.05	0.07
0.5	16	2 to 24	57 to 610	2	2	17.50	0.07
0.75	25	0.75 to 1.5	25 to 44.5	2	2	22.20	0.11
0.75	25	2 to 24	57 to 610	2	2	20.60	0.11
1	30	1 to 1.5	30 to 44.5	2.5	2.5	27.00	0.18
1	30	2 to 24	57 to 610	2.5	2.5	22.20	0.18
1.25	38	1.25 to 1.5	38 to 44.5	2.5	2.5	30.20	0.32
1.25	38	2 to 24	57 to 610	2.5	2.5	25.40	0.32
1.5	44.5	1.5	44.5	2.5	2.5	33.30	0.36
1.5	44.5	2 to 24	57 to 610	2.5	2.5	28.60	0.36
2	57	2 to 2.5	57 to 76.1	2.5	2.5	38.10	0.68
2	57	3 to 24	88.9 to 610	2.5	2.5	33.30	0.68
2.5	76.1	3 to 4	76.1 to 108	2.5	2.5	47.60	1.4
2.5	76.1	6 to 24	159 to 610	2.5	2.5	44.50	1.4
3	88.9	3 to 4	88.9 to 108	2.5	2.5	47.60	1.7
3	88.9	6 to 24	159 to 610	2.5	2.5	44.50	1.7
4	108	4	108	3	3	46.80	3
4	108	6	159	3	3	52.4	3
4	108	8 to 24	219.1 to 610	3	3	49.2	6.4
6	159	6 to 24	159 to 610	3	3.5	60.30	6.4
8	219.1	8 to 24	219.1 to 610	4	4.5	69.90	12.7
10	267	10 to 24	267 to 610	4.5	5.5	77.80	17.7
12	323.9	12 to 24	323.9 to 610	5.5	7	85.70	29.5
14	368	14 to 24	368 to 610	6.5	8	'88.90	31.8
16	419.1	16 to 24	419.1 to 610	7	9	93.70	41.7
18	457.2	18 to 24	457.2 to 610	8	9.5	96.80	53.2
20	508	20 to 24	508 to 610	8.5	11	115.90	68.3
24	610	24	610	11/2	13	115.9	91.2

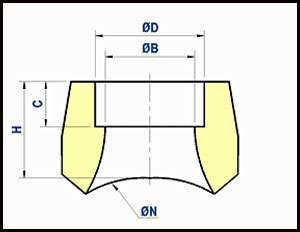

»sockolets

Outside diameter of branch pipe		Outside diameter of header					Theoretical
ØD		ØN		ØB	H	C	weight
nominal inch	actual mm	nominal inch	actual mm	mm	mm	mm	Kg/piece

0.5	16	0.75 to 1.5	25 to 44.5	12.0	25.4	10	0.10
0.5	16	2 to 36	57 to 914	12.0	23.8	10	0.10
0.75	25	1 to 1.5	30 to 44.5	21.0	26.9	13	0.13
0.75	25	2 to 36	57 to 914	21.0	25.4	13	0.13
1	30	1.25 to 1.5	38 to 44.5	25.0	33.3	13	0.22
1	30	2 to 36	57 to 914	25.0	28.6	13	0.22
1.25	38	2 to 36	57 to 914	33.0	33.3	13	0.35
1.25	38	2 to 36	57 to 914	33.0	33.3	13	0.35
1.5	44.5	2 to 36	57 to 914	39.5	30.2	13	0.50
1.5	44.5	2 to 36	57 to 914	39.5	30.2	13	0.50
2	57	2.5 to 36	76.1 to 914	52.0	38.1	16	0.90
2	57	2.5 to 36	76.1 to 914	52.0	38.1	16	0.90

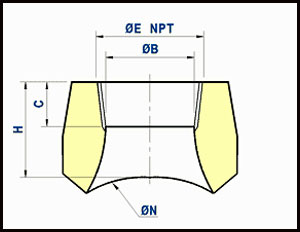

»threadolets

Outside diameter of branch pipe		Outside diameter of header					Theoretical
ØD		ØA		ØB	H	C	weight
nominal inch	actual (NPT)	nominal inch	actual mm	(bore) mm	mm	mm	Kg/piece

1/2"	1/2"	3/4" to 1" 1/2	25 to 44.5	11.74	25.4	13.5	0.10
1/2"	1/2"	2" to 36"	57 to 914	11.74	23.8	13.5	0.10
3/4"	3/4"	1" to 1" 1/2	30 to 44.5	15.58	26.9	14	0.13
3/4"	3/4"	2" to 36"	57 to 914	15.58	25.4	14	0.13
1"	1"	1"1/4 to 1" 1/2	38 to 44.5	20.70	33.3	17.5	0.22
1"	1"	2" to 36"	57 to 914	20.70	28.6	17.5	0.22
1" 1/4	1" 1/4	2" to 36"	57 to 914	29.50	33.3	18	0.35
1" 1/4	1" 1/4	2" to 36"	57 to 914	29.50	33.3	18	0.35
1" 1/2	1" 1/2	2" to 36"	57 to 914	34.02	30.2	18.5	0.50
1" 1/2	1" 1/2	2" to 36"	57 to 914	34.02	30.2	18.5	0.50
2"	2"	2" 1/2 to 36"	76.1 to 914	42.82	38.1	19	0.90
2"	2"	2" 1/2 to 36"	76.1 to 914	42.82	38.1	19	0.90
