Copper Nickel - FLANGES

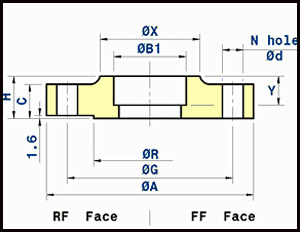

Solid Socket Welding Flange - ANSI B16.5 In Copper Nickel




solid socket welding flange - 150 lbs - ANSI B16.5



Outside diameter of pipe Drilling Theo.
ØD ØA H C ØX ØR ØB1 Y ØG N Ød weight
nominal
inch 		actual
mm
mm
mm
mm
mm
mm
mm
mm
mm 		bolt
holes
mm
Kg/piece

0.5 20 88.9 15.9 11.1 30.2 34.9 20.2 9.5 60.3 4 15.9 0.80
0.75 25 98.4 15.9 12.7 38.1 42.9 25.2 11.1 69.8 4 15.9 1.10
1 30 107.9 17.5 14.3 49.2 50.8 30.2 12.7 79.4 4 15.9 1.20
1.25 38 117.5 20.6 15.9 58.7 63.5 38.3 14.3 88.9 4 15.9 1.50
1.5 44.5 127.0 22.2 17.5 65.1 73.0 44.8 15.9 98.4 4 15.9 1.60
2 57 152.4 25.5 19.1 77.8 92.1 57.4 17.5 120.6 4 19 2.70
2.5 76.1 177.8 28.6 22.2 90.5 104.8 76.5 19.0 139.7 4 19 4.10
3 88.9 190.5 30.2 23.8 107.9 127.0 89.4 20.6 152.4 4 19 4.10
4 108 228.6 33.3 23.8 134.9 157.2 108.5 23.8 190.5 8 19 7.00


»solid socket welding flange - 300 lbs - ANSI B16.5




Outside diameter of pipe Drilling Theo.
ØD ØA H C ØX ØR ØB1 Y ØG N Ød weight
nominal
inch 		actual
mm
mm
mm
mm
mm
mm
mm
mm
mm 		bolt
holes
mm
Kg/piece

0.5 20 95.2 22.2 14.3 38.1 34.9 20.2 9.5 66.7 4 15.9 0.90
0.75 25 117.5 25.4 15.9 47.6 42.9 25.2 11.1 82.5 4 19 1.40
1 30 123.8 27.0 17.5 54.0 50.8 30.2 12.7 88.9 4 19 1.70
1.25 38 133.3 27.0 19.0 63.5 63.5 38.3 14.3 98.4 4 19 2.00
1.5 44.5 155.6 30.2 20.6 69.8 73.0 44.8 15.9 114.3 4 22.2 3.00
2 57 165.1 33.3 22.2 84.1 92.1 57.4 17.5 127.0 8 19 3.40
2.5 76.1 190.5 38.1 25.4 100.0 104.8 76.5 19.0 149.2 8 22.2 5.10
3 88.9 209.5 42.9 28.6 117.5 127.0 89.4 20.6 168.3 8 22.2 6.80
4 108 254.0 47.60 31.8 146.0 157.2 108.5 23.8 200.0 8 22.2 11.30
