Composite Blind Flange - ISO NP10 / ANSI B16.5 In Carbon Steel With Copper Nickel Disc Galvanized Or Epoxy Coated
composite blind flange - 10 bar - ISO NP10 in carbon steel with copper nickel disc galvanized or epoxy coated

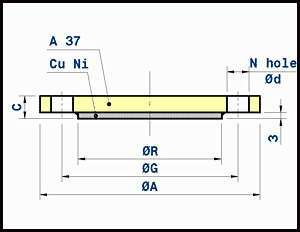

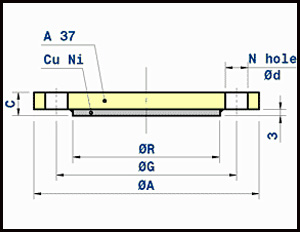

Outside diameter of pipe | Drilling | Theo. | ||||||
ØD | ØA | C | ØR | ØG | N | Ød | weight | |
nominal inch |
actual mm |
mm |
mm |
mm |
mm |
bolt holes |
mm |
Kg/piece |
0.5 | 20 | 95 | 14 | 46 | 65 | 4 | 14 | 0.78 |
0.75 | 25 | 105 | 16 | 56 | 75 | 4 | 14 | 1.15 |
1 | 30 | 115 | 16 | 65 | 85 | 4 | 14 | 1.40 |
1.25 | 38 | 140 | 18 | 76 | 100 | 4 | 18 | 2.00 |
1.5 | 44.5 | 150 | 18 | 84 | 110 | 4 | 18 | 2.35 |
2 | 57 | 165 | 20 | 99 | 125 | 4 | 18 | 3.20 |
2.5 | 76.1 | 185 | 20 | 118 | 145 | 4 | 18 | 4.15 |
3 | 88.9 | 200 | 20 | 132 | 160 | 8 | 18 | 5.70 |
4 | 108 | 220 | 22 | 156 | 180 | 8 | 18 | 7.05 |
5 | 133 | 250 | 22 | 184 | 210 | 8 | 18 | 10.05 |
6 | 159 | 285 | 24 | 211 | 240 | 8 | 22 | 13.00 |
7 | 193.7 | 315 | 24 | 242 | 270 | 8 | 22 | 18.00 |
8 | 219.1 | 340 | 24 | 266 | 295 | 8 | 22 | 20.80 |
10 | 267 | 395 | 26 | 319 | 350 | 12 | 22 | 29.65 |
12 | 323.9 | 445 | 26 | 370 | 400 | 12 | 22 | 38.70 |
14 | 368 | 505 | 26 | 429 | 460 | 16 | 22 | 53.55 |
16 | 419.1 | 565 | 28 | 480 | 515 | 16 | 26 | 69.45 |
18 | 457.2 | 615 | 28 | 530 | 565 | 20 | 26 | 82.40 |
20 | 508 | 670 | 30 | 582 | 620 | 20 | 26 | 104.70 |
24 | 610 | 780 | 34 | 682 | 725 | 20 | 30 | 149.75 |
»composite blind flange - 150 lbs - ANSI B16.5 in carbon steel with copper nickel disc galvanized or epoxy coated
Outside diameter of pipe | Drilling | Theo. | ||||||
ØD | ØA | C | ØR | ØG | N | Ød | weight | |
nominal inch |
actual mm |
mm |
mm |
mm |
mm |
bolt holes |
mm |
Kg/piece |
0.5 | 20 | 88.9 | 12.5 | 34.9 | 60.3 | 4 | 15.9 | 0.80 |
0.75 | 25 | 98.4 | 14.1 | 42.9 | 69.8 | 4 | 15.9 | 0.90 |
1 | 30 | 108.0 | 15.7 | 50.8 | 79.4 | 4 | 15.9 | 1.00 |
1.25 | 38 | 117.5 | 17.3 | 63.5 | 88.9 | 4 | 15.9 | 1.30 |
1.5 | 44.5 | 127.0 | 18.9 | 73.0 | 98.4 | 4 | 15.9 | 1.40 |
2 | 57 | 152.4 | 20.5 | 92.1 | 120.6 | 4 | 19 | 1.80 |
2.5 | 76.1 | 177.8 | 23.6 | 104.8 | 139.7 | 4 | 19 | 3.20 |
3 | 88.9 | 190.5 | 25.2 | 127.0 | 152.4 | 4 | 19 | 4.00 |
4 | 108 | 228.6 | 25.2 | 157.2 | 190.5 | 8 | 19 | 8.00 |
5 | 133 | 254.0 | 25.2 | 185.7 | 215.9 | 8 | 22.2 | 9.00 |
6 | 159 | 279.4 | 26.8 | 215.9 | 241.3 | 8 | 22.2 | 12.00 |
8 | 219.1 | 342.9 | 30.0 | 269.9 | 298.4 | 8 | 22.2 | 20.00 |
10 | 267 | 406.4 | 31.6 | 323.8 | 361.9 | 12 | 25.4 | 32.00 |
12 | 323.9 | 482.6 | 33.2 | 381.0 | 431.8 | 12 | 25.4 | 50.00 |
14 | 368 | 533.4 | 36.3 | 425.1 | 476.2 | 12 | 28.6 | 59.00 |
16 | 419.1 | 596.9 | 37.9 | 482.6 | 539.7 | 16 | 28.6 | 77.00 |
18 | 457.2 | 635.0 | 41.1 | 533.4 | 577.8 | 16 | 31.7 | 95.00 |
20 | 508 | 698.5 | 44.3 | 584.2 | 635.0 | 20 | 31.7 | 123.00 |
24 | 610 | 812.8 | 49.0 | 692.1 | 749.3 | 20 | 34.9 | 186.00 |
» composite blind flange - 300 lbs - ANSI B16.5 in carbon steel with copper nickel disc galvanized or epoxy coated
Outside diameter of pipe | Drilling | Theo. | ||||||
ØD | ØA | C | ØR | ØG | N | Ød | weight | |
nominal inch |
actual mm |
mm |
mm |
mm |
mm |
bolt holes |
mm |
Kg/piece |
0.5 | 20 | 95.2 | 15.6 | 34.9 | 66.7 | 4 | 15.9 | 1.00 |
0.75 | 25 | 117.5 | 17.3 | 42.9 | 82.5 | 4 | 19 | 1.50 |
1 | 30 | 123.8 | 18.9 | 50.8 | 88.9 | 4 | 19 | 2.00 |
1.25 | 38 | 133.3 | 20.4 | 63.5 | 98.4 | 4 | 19 | 2.50 |
1.5 | 44.5 | 155.6 | 22.0 | 73.0 | 114.3 | 4 | 22.2 | 3.00 |
2 | 57 | 165.1 | 23.6 | 92.1 | 127.0 | 8 | 19 | 3.50 |
2.5 | 76.1 | 190.5 | 26.8 | 104.8 | 149.2 | 8 | 22.2 | 5.50 |
3 | 88.9 | 209.5 | 30.0 | 127.0 | 168.3 | 8 | 22.2 | 7.00 |
4 | 108 | 254.0 | 33.2 | 157.2 | 200.0 | 8 | 22.2 | 12.00 |
5 | 133 | 279.4 | 36.3 | 185.7 | 234.9 | 8 | 22.2 | 16.00 |
6 | 159 | 317.5 | 37.9 | 215.9 | 269.9 | 12 | 22.2 | 23.00 |
8 | 219.1 | 381.0 | 42.7 | 269.9 | 330.2 | 12 | 25.4 | 36.50 |
10 | 267 | 444.5 | 49.0 | 323.8 | 387.3 | 16 | 28.6 | 57.50 |
12 | 323.9 | 520.7 | 52.2 | 381.0 | 450.8 | 16 | 31.7 | 83.00 |
14 | 368 | 584.2 | 55.4 | 425.1 | 514.3 | 20 | 31.7 | 107.00 |
16 | 419.1 | 647.7 | 58.6 | 482.6 | 571.5 | 20 | 34.9 | 139.00 |
18 | 457.2 | 711.2 | 61.7 | 533.4 | 628.6 | 24 | 34.9 | 177.00 |
20 | 508 | 774.7 | 64.9 | 584.2 | 685.8 | 24 | 34.9 | 223.00 |
24 | 610 | 914.4 | 71.2 | 692.1 | 812.8 | 24 | 41.3 | 342.00 |
