Composite Slip On Flange - DIN 86036 / EEMUA 145 / ISO In Copper Nickel And Carbon Steel

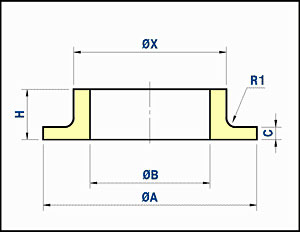

inner flange - 10 bar - DIN 86036 in copper nickel
Outside diameter of pipe | Theo. | |||||||
ØD | ØA | H | C | ØX | ØB | R1 | weight | |
nominal inch |
actual mm |
mm |
mm |
mm |
mm |
mm |
mm |
Kg/piece |
0.5 | 20 | 45 | 22 | 6 | 31 | 20.20 | 2 | 0.13 |
0.75 | 25 | 58 | 22 | 6 | 37 | 25.20 | 2 | 0.19 |
1 | 30 | 68 | 24 | 6 | 44 | 30.20 | 2 | 0.28 |
1.25 | 38 | 78 | 24 | 6 | 54 | 38.25 | 2 | 0.37 |
1.5 | 44.5 | 88 | 24 | 6 | 60 | 44.75 | 2 | 0.43 |
2 | 57 | 102 | 24 | 6 | 73 | 57.30 | 2 | 0.54 |
2.5 | 76.1 | 122 | 24 | 6 | 90 | 76.30 | 2 | 0.65 |
3 | 88.9 | 138 | 26 | 6 | 106 | 89.40 | 2 | 0.89 |
4 | 108 | 158 | 26 | 6 | 126 | 108.40 | 2 | 1.10 |

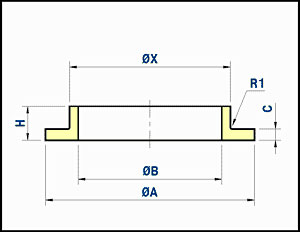

»inner flange - 16&20 bar - EEMUA 145 in copper nickel
Outside diameter of pipe | Theo. | |||||||
ØD | ØA | H | C | ØX | ØB | R1 | weight | |
nominal inch |
actual mm |
mm |
mm |
mm |
mm |
mm |
mm |
Kg/piece |
0.5 | 16 | 40 | 16 | 5 | 21 | 16.07 | 1 | 0.06 |
0.75 | 25 | 53 | 16 | 5 | 31 | 25.08 | 1 | 0.10 |
1 | 30 | 60 | 18 | 5 | 36 | 30.08 | 1 | 0.14 |
1.25 | 38 | 70 | 18 | 5 | 45 | 38.10 | 1 | 0.20 |
1.5 | 44.5 | 80 | 19 | 5 | 51 | 44.60 | 1 | 0.30 |
2 | 57 | 99 | 19 | 6 | 67 | 57.23 | 1 | 0.40 |
2.5 | 76.1 | 120 | 19 | 6 | 87 | 76.33 | 1 | 0.50 |
3 | 88.9 | 130 | 21 | 7 | 100 | 89.18 | 1 | 0.70 |
4 | 108 | 158 | 23 | 7 | 120 | 108.38 | 1 | 0.90 |

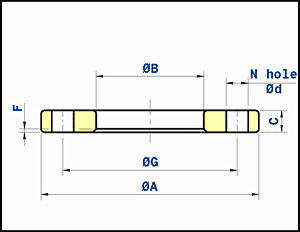

» outer flange - 10 bar - ISO NP10 in carbon steel - galvanized or epoxy coated
Outside diameter of pipe | Drilling | Theo. | |||||||
ØD | ØA | C | ØB | F | ØG | N | Ød | weight | |
nominal inch |
actual mm |
mm |
mm |
mm |
mm |
mm |
bolt holes |
mm |
Kg/piece |
0.5 | 20 | 95 | 14 | 32 | 2 | 65 | 4 | 14 | 0.65 |
0.75 | 25 | 105 | 14 | 38 | 2 | 75 | 4 | 14 | 0.75 |
1 | 30 | 115 | 16 | 45 | 2 | 85 | 4 | 14 | 1.01 |
1.25 | 38 | 140 | 16 | 55 | 2 | 100 | 4 | 18 | 1.50 |
1.5 | 44.5 | 150 | 16 | 62 | 2 | 110 | 4 | 18 | 1.71 |
2 | 57 | 165 | 16 | 75 | 2 | 125 | 4 | 18 | 2.00 |
2.5 | 76.1 | 185 | 16 | 92 | 2 | 145 | 4 | 18 | 2.41 |
3 | 88.9 | 200 | 18 | 108 | 2 | 160 | 4 | 18 | 3.00 |
4 | 108 | 220 | 18 | 128 | 2 | 180 | 8 | 18 | 3.26 |
outer flange - 16&20 bar - EEMUA 145 in carbon steel - galvanized or epoxy coated
Outside diameter of pipe | Drilling | Theo. | |||||||
ØD | ØA | C | ØB | F | ØG | N | Ød | weight | |
nominal inch |
actual mm |
mm |
mm |
mm |
mm |
mm |
bolt holes |
mm |
Kg/piece |
0.5 | 16 | 89 | 14 | 23 | 3 | 60.3 | 4 | 15.9 | 0.75 |
0.75 | 25 | 98 | 14 | 33 | 3 | 69.8 | 4 | 15.9 | 0.80 |
1 | 30 | 108 | 14 | 38 | 3 | 79.4 | 4 | 15.9 | 0.95 |
1.25 | 38 | 117 | 14 | 47 | 3 | 88.9 | 4 | 15.9 | 1.10 |
1.5 | 44.5 | 127 | 14 | 53 | 3 | 98.4 | 4 | 15.9 | 1.15 |
2 | 57 | 152 | 18 | 69 | 3 | 120.6 | 4 | 19 | 2.10 |
2.5 | 76.1 | 178 | 18 | 89 | 3 | 139.7 | 4 | 19 | 2.60 |
3 | 88.9 | 190 | 19 | 103 | 3 | 152.4 | 4 | 19 | 2.90 |
4 | 108 | 229 | 24 | 123 | 3 | 190.5 | 4 | 19 | 5.90 |
