Forged Tees In Copper Nickel

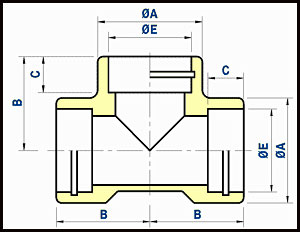

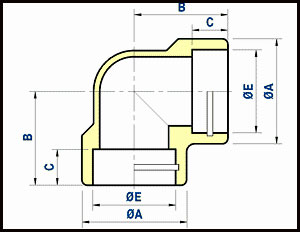

Socket welding or capillary ends equal
Outside diameter of pipe | Theoretical | |||||
ØD | ØA | B | ØE | C | weight | |
nominal inch |
actual mm |
mm |
mm |
mm |
mm |
Kg/piece |
0.38 | 16 | 22.20 | 20 | 16.1 | 10 | 0.09 |
0.5 | 20 | 26.05 | 25 | 20.1 | 10 | 0.12 |
0.75 | 25 | 33.00 | 29 | 25.1 | 13 | 0.31 |
1 | 30 | 38.00 | 34 | 30.1 | 13 | 0.37 |
1.25 | 38 | 46.00 | 38 | 38.1 | 13 | 0.65 |
1.5 | 44.5 | 56.00 | 44 | 44.6 | 13 | 1.08 |
2 | 57 | 63.50 | 50 | 57.3 | 16 | 1.43 |
»Reducing tees socket welding or capillary ends
Outside diameter of pipe | Theoretical | |||||||||||
ØD | ØA | C | ØE | C | ØG | H | weight | |||||
nominal inch |
actual mm |
mm |
mm |
mm |
mm |
mm |
mm |
Kg/piece |
||||
0.5 | x | 0.125 | 20 | x | 16 | 26.5 | 25 | 20.1 | 10 | 16.1 | 10 | 0.14 |
0.75 | x | 0.125 | 25 | x | 16 | 33 | 29 | 25.1 | 13 | 16.1 | 10 | 0.37 |
0.75 | x | 0.5 | 25 | x | 20 | 33 | 29 | 25.1 | 13 | 20.1 | 10 | 0.35 |
1 | x | 0.125 | 30 | x | 16 | 38 | 34 | 30.1 | 13 | 16.1 | 10 | 0.47 |
1 | x | 0.5 | 30 | x | 20 | 38 | 34 | 30.1 | 13 | 20.1 | 10 | 0.45 |
1 | x | 0.75 | 30 | x | 25 | 38 | 34 | 30.1 | 13 | 25.1 | 13 | 0.41 |
1.25 | x | 0.125 | 38 | x | 16 | 46 | 38 | 38.1 | 13 | 16.1 | 10 | 0.83 |
1.25 | x | 0.5 | 38 | x | 20 | 46 | 38 | 38.1 | 13 | 20.1 | 10 | 0.81 |
1.25 | x | 0.75 | 38 | x | 25 | 46 | 38 | 38.1 | 13 | 25.1 | 13 | 0.77 |
1.25 | x | 1 | 38 | x | 30 | 46 | 38 | 38.1 | 13 | 30.1 | 13 | 0.73 |
1.5 | x | 0.125 | 44.5 | x | 16 | 56 | 44 | 44.6 | 13 | 16.1 | 10 | 1.35 |
1.5 | x | 0.5 | 44.5 | x | 20 | 56 | 44 | 44.6 | 13 | 20.1 | 10 | 1.33 |
1.5 | x | 0.75 | 44.5 | x | 25 | 56 | 44 | 44.6 | 13 | 25.1 | 13 | 1.29 |
1.5 | x | 1 | 44.5 | x | 30 | 56 | 44 | 44.6 | 13 | 30.1 | 13 | 1.25 |
1.5 | x | 1.25 | 44.5 | x | 38 | 56 | 44 | 44.6 | 13 | 38.1 | 13 | 1.17 |
2 | x | 0.125 | 57 | x | 16 | 63.5 | 50 | 57.3 | 16 | 16.1 | 10 | 1.89 |
2 | x | 0.5 | 57 | x | 20 | 63.5 | 50 | 57.3 | 16 | 20.1 | 10 | 1.87 |
2 | x | 0.75 | 57 | x | 25 | 63.5 | 50 | 57.3 | 16 | 25.1 | 13 | 1.83 |
2 | x | 1 | 57 | x | 30 | 63.5 | 50 | 57.3 | 16 | 30.1 | 13 | 1.79 |
2 | x | 1.25 | 57 | x | 38 | 63.5 | 50 | 57.3 | 16 | 38.1 | 13 | 1.71 |
2 | x | 1.5 | 57 | x | 44.5 | 63.5 | 50 | 57.3 | 16 | 44.6 | 13 | 1.62 |
