Copper Nickel - Buttweld Fittings

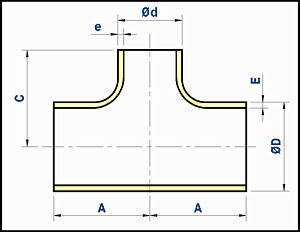

Reducing Tees - Ext. From DIN 86088 / EEMUA 146 In Copper Nickel




10 bar - Ext. from DIN 86088



Outside diameter of pipe Wall Centre Theoretical
ØD x Ød ØD x Ød thickness to face weight
nominal
inch
actual
mm
E
mm
e
mm
A
mm
C
mm

Kg/piece

1.25 x 1 38 x 30 1.5 1.5 48 42 0.10
1.5 x 1 44.5 x 30 1.5 1.5 57 45 0.21
1.5 x 1.25 44.5 x 38 1.5 1.5 57 51 0.21
2 x 1 57 x 30 1.5 1.5 64 51 0.32
2 x 1.25 57 x 38 1.5 1.5 64 57 0.32
2 x 1.5 57 x 44.5 1.5 1.5 64 63 0.32
2.5 x 1 76.1 x 30 2 1.5 76 56 0.65
2.5 x 1.25 76.1 x 38 2 1.5 76 62 0.65
2.5 x 1.5 76.1 x 44.5 2 1.5 76 71 0.67
2.5 x 2 76.1 x 57 2 1.5 76 73 0.67
3 x 1.25 88.9 x 38 2 1.5 86 73 0.87
3 x 1.5 88.9 x 44.5 2 1.5 86 76 0.87
3 x 2 88.9 x 57 2 1.5 86 80 0.89
3 x 2.5 88.9 x 76.1 2 2 86 83 0.92
4 x 1.5 108 x 44.5 2.5 1.5 105 89 1.60
4 x 2 108 x 57 2.5 1.5 105 90 1.60
4 x 2.5 108 x 76.1 2.5 2 105 92 1.65
4 x 3 108 x 88.9 2.5 2 105 96 1.65
5 x 2 133 x 57 2.5 1.5 124 98 3.00
5 x 2.5 133 x 76.1 2.5 2 124 105 3.10
5 x 3 133 x 88.9 2.5 2 124 108 3.25
5 x 4 133 x 108 2.5 2.5 124 117 3.30
5 x 2 133 x 57 3 1.5 124 98 3.60
5 x 2.5 133 x 76.1 3 2 124 105 3.70
5 x 4 133 x 108 3 2.5 124 117 3.95
6 x 2.5 159 x 76.1 2.5 2 143 118 4.40
6 x 3 159 x 88.9 2.5 2 143 121 4.50
6 x 4 159 x 108 2.5 2.5 143 130 4.60
6 x 5 159 x 133 2.5 2.5 143 136 4.60
6 x 2.5 159 x 76.1 3 2 143 118 5.25
6 x 4 159 x 108 3 2.5 143 130 5.50
8 x 4 219.1 x 108 3 2.5 178 156 12.6
8 x 5 219.1 x 133 3 2.5 178 162 12.7
8 x 6 219.1 x 159 3 2.5 178 168 12.8
8 x 4 219.1 x 108 3.5 2.5 178 156 14.75
10 x 4 267 x 108 3 2.5 194 209 12.5
10 x 5 267 x 133 3 2.5 217 219 13.5
10 x 6 267 x 159 3 2.5 240 229 14.8
10 x 7 267 x 193.7 3 2.5 267 243 15.2
10 x 8 267 x 219.1 3 3 290 259 16.6
10 x 4 267 x 108 4 2.5 194 209 16.7
12 x 5 323.9 x 133 4 2.5 217 247 28.6
12 x 6 323.9 x 159 4 2.5 240 257 30.45
12 x 7 323.9 x 193.7 4 2.5 267 272 32.6
12 x 8 323.9 x 219.1 4 3 290 287 34.6
12 x 10 323.9 x 267 4 3 324 317 37.8
14 x 6 368 x 159 4 2.5 240 279 37.4
14 x 7 368 x 193.7 4 2.5 267 294 39.85
14 x 8 368 x 219.1 4 3 290 309 42.1
14 x 10 368 x 267 4 3 324 339 45.55
14 x 12 368 x 323.9 4 4 380 369 52
16 x 7 419.1 x 193.7 4 2.5 267 319 49.1
16 x 8 419.1 x 219.1 4 3 290 335 52.1
16 x 10 419.1 x 267 4 3 324 365 56.4
16 x 12 419.1 x 323.9 4 4 380 395 64.8
16 x 14 419.1 x 368 4 4 407 410 68.9
18 x 10 457.2 x 267 4 3 324 383 55.7
18 x 12 457.2 x 323.9 4 4 380 413 64.6
18 x 14 457.2 x 368 4 4 407 428 68.9
18 x 16 457.2 x 419.1 4 4 440 453 74.6
20 x 12 508 x 323.9 4.5 4 380 439 72.5
20 x 14 508 x 368 4.5 4 407 454 77.4
20 x 16 508 x 419.1 4.5 4 440 479 83.9
20 x 18 508 x 457.2 4.5 4 500 509 94.1
24 x 14 610 x 368 5 4 407 505 109.95
24 x 16 610 x 419.1 5 4 440 530 117.85
24 x 18 610 x 457.2 5 4 500 555 130.35
24 x 20 610 x 508 5 4.5 540 580 141.85



» 14 bar - Ext. from DIN 86088




Outside diameter of pipe Wall Centre Theoretical
ØD x Ød ØD x Ød thickness to face weight
nominal
inch
actual
mm
E
mm
e
mm
A
mm
C
mm

Kg/piece

3 x 1.25 88.9 x 38 2.5 1.5 86 73 1.08
3 x 1.5 88.9 x 44.5 2.5 1.5 86 76 1.08
3 x 2 88.9 x 57 2.5 1.5 86 80 1.10
3 x 2.5 88.9 x 76.1 2.5 2 86 83 1.15
4 x 3 108 x 88.9 2.5 2.5 105 96 1.65
5 x 3 133 x 88.9 3 2.5 124 108 3.90
6 x 3 159 x 88.9 3 2.5 143 121 5.40
6 x 5 159 x 133 3 3 143 136 5.50
8 x 5 219.1 x 133 3.5 3 178 162 14.85
8 x 6 219.1 x 159 3.5 3 178 168 14.95
10 x 5 267 x 133 4 3 217 219 18
10 x 6 267 x 159 4 3 240 229 19.75
10 x 7 267 x 193.7 4 3.5 267 243 20.25
10 x 8 267 x 219.1 4 3.5 290 259 22.1
12 x 5 323.9 x 133 5 3 217 247 35.75
12 x 6 323.9 x 159 5 3 240 257 38
12 x 7 323.9 x 193.7 5 3.5 267 272 40.75
12 x 8 323.9 x 219.1 5 3.5 290 287 43.25
12 x 10 323.9 x 267 5 4 324 317 47.25
14 x 6 368 x 159 5.5 3 240 279 51.4
14 x 7 368 x 193.7 5.5 3.5 267 294 54.8
14 x 8 368 x 219.1 5.5 3.5 290 309 57.9
14 x 10 368 x 267 5.5 4 324 339 62.65
14 x 12 368 x 323.9 5.5 5 380 369 71.5
16 x 7 419.1 x 193.7 6 3.5 267 319 73.65
16 x 8 419.1 x 219.1 6 3.5 290 335 78.15
16 x 10 419.1 x 267 6 4 324 365 84.6
16 x 12 419.1 x 323.9 6 5 380 395 97.2
16 x 14 419.1 x 368 6 5.5 407 410 103.35
18 x 10 457.2 x 267 6 4 324 383 83.55
18 x 12 457.2 x 323.9 6 5 380 413 96.9
18 x 14 457.2 x 368 6 5.5 407 428 103.35
18 x 16 457.2 x 419.1 6 6 440 453 111.9
20 x 12 508 x 323.9 6.5 5 380 439 104.7
20 x 14 508 x 368 6.5 5.5 407 454 111.8
20 x 16 508 x 419.1 6.5 6 440 479 121.2
20 x 18 508 x 457.2 6.5 6 500 509 135.9
24 x 14 610 x 368 8 5.5 407 505 175.9
24 x 16 610 x 419.1 8 6 440 530 188.55
24 x 18 610 x 457.2 8 6 500 555 208.6
24 x 20 610 x 508 8 6.5 540 580 226.95



» 16 bar - EEMUA 146



Outside diameter of pipe Wall Centre Theoretical
ØD x Ød ØD x Ød thickness to face weight
nominal
inch
actual
mm
E
mm
e
mm
A
mm
C
mm

Kg/piece

1 x 0.75 30 x 25 2.5 2 38 38 0.17
1.25 x 0.75 38 x 25 2.5 2 48 48 0.28
1.25 x 1 38 x 30 2.5 2.5 48 48 0.28
1.5 x 0.75 44.5 x 25 2.5 2 57 57 0.37
1.5 x 1 44.5 x 30 2.5 2.5 57 57 0.40
1.5 x 1.25 44.5 x 38 2.5 2.5 57 57 0.41
2 x 1 57 x 30 2.5 2.5 64 51 0.51
2 x 1.25 57 x 38 2.5 2.5 64 57 0.54
2 x 1.5 57 x 44.5 2.5 2.5 64 60 0.55
2.5 x 1.25 76.1 x 38 2.5 2.5 76 64 0.83
2.5 x 1.5 76.1 x 44.5 2.5 2.5 76 67 0.84
2.5 x 2 76.1 x 57 2.5 2.5 76 70 0.85
3 x 1.5 88.9 x 44.5 2.5 2.5 86 73 1.1
3 x 2 88.9 x 57 2.5 2.5 86 76 1.12
3 x 2.5 88.9 x 76.1 2.5 2.5 86 83 1.15
4 x 2 108 x 57 3 2.5 105 89 1.9
4 x 2.5 108 x 76.1 3 2.5 105 95 1.92
4 x 3 108 x 88.9 3 2.5 105 98 1.95
6 x 2.5 159 x 76.1 3 2.5 143 121 3.95
6 x 3 159 x 88.9 3 2.5 143 124 4
6 x 4 159 x 108 3 3 143 130 4.05
8 x 3 219.1 x 88.9 4 2.5 178 152 16.6
8 x 4 219.1 x 108 4 3 178 156 16.9
8 x 6 219.1 x 159 4 3 178 168 17
10 x 4 267 x 108 4.5 3 216 184 21.6
10 x 6 267 x 159 4.5 3 216 194 21.75
10 x 8 267 x 219.1 4.5 4 216 203 21.9
12 x 6 323.9 x 159 5.5 3 254 219 38.5
12 x 8 323.9 x 219.1 5.5 4 254 229 39.6
12 x 10 323.9 x 267 5.5 4.5 254 241 40.7
14 x 8 368 x 219.1 6.5 4 279 248 58.8
14 x 10 368 x 267 6.5 4.5 279 257 59.7
14 x 12 368 x 323.9 6.5 5.5 279 270 61.5
16 x 10 419.1 x 267 7 4.5 305 283 89.6
16 x 12 419.1 x 323.9 7 5.5 305 295 91.4
16 x 14 419.1 x 368 7 6.5 305 305 93.5
18 x 12 457.2 x 323.9 8 5.5 343 321 126.3
18 x 14 457.2 x 368 8 6.5 343 330 128.3
18 x 16 457.2 x 419.1 8 7 343 330 129.9
20 x 14 508 x 368 8.5 6.5 381 356 162
20 x 16 508 x 419.1 8.5 7 381 356 164.2
20 x 18 508 x 457.2 8.5 8 381 368 168.3
24 x 8 610 x 419.1 10.5 7 432 406 248.3
24 x 10 610 x 457.2 10.5 8 432 419 251.7
24 x 12 610 x 508 10.5 8.5 432 432 255.3
28 x 10 711 x 457.2 12 8 521 470 394.6
28 x 12 711 x 508 12 8.5 521 483 398.2
28 x 14 711 x 610 12 10.5 521 508 409.9
32 x 8 813 x 508 13.5 8.5 597 533 495
32 x 10 813 x 610 13.5 10.5 597 559 506.8
32 x 12 813 x 711 13.5 12 597 572 518.8
36 x 10 914 x 610 15.5 10.5 673 610 723.6
36 x 12 914 x 711 15.5 12 673 622 735.4
36 x 14 914 x 813 15.5 13.5 673 648 754.4




» 20 bar - EEMUA 146



Outside diameter of pipe Wall Centre Theoretical
ØD x Ød ØD x Ød thickness to face weight
nominal
inch
actual
mm
E
mm
e
mm
A
mm
C
mm

Kg/piece

1 x 0.75 30 x 25 2.5 2 38 38 0.17
1.25 x 0.75 38 x 25 2.5 2 48 48 0.28
1.25 x 1 38 x 30 2.5 2.5 48 48 0.28
1.5 x 0.75 44.5 x 25 2.5 2 57 57 0.37
1.5 x 1 44.5 x 30 2.5 2.5 57 57 0.4
1.5 x 1.25 44.5 x 38 2.5 2.5 57 57 0.41
2 x 1 57 x 30 2.5 2.5 64 51 0.51
2 x 1.25 57 x 38 2.5 2.5 64 57 0.54
2 x 1.5 57 x 44.5 2.5 2.5 64 60 0.55
2.5 x 1.25 76.1 x 38 2.5 2.5 76 64 0.83
2.5 x 1.5 76.1 x 44.5 2.5 2.5 76 67 0.84
2.5 x 2 76.1 x 57 2.5 2.5 76 70 0.85
3 x 1.5 88.9 x 44.5 2.5 2.5 86 73 1.10
3 x 2 88.9 x 57 2.5 2.5 86 76 1.12
3 x 2.5 88.9 x 76.1 2.5 2.5 86 83 1.15
4 x 2 108 x 57 3 2.5 105 89 1.9
4 x 2.5 108 x 76.1 3 2.5 105 95 1.92
4 x 3 108 x 88.9 3 2.5 105 98 1.95
6 x 2.5 159 x 76.1 3.5 2.5 143 121 4.6
6 x 3 159 x 88.9 3.5 2.5 143 124 4.65
6 x 4 159 x 108 3.5 3 143 130 4.72
8 x 3 219.1 x 88.9 4.5 2.5 178 152 18.7
8 x 4 219.1 x 108 4.5 3 178 156 19
8 x 6 219.1 x 159 4.5 3.5 178 168 19.1
10 x 4 267 x 108 5.5 3 216 184 26.4
10 x 6 267 x 159 5.5 3.5 216 194 26.6
10 x 8 267 x 219.1 5.5 4.5 216 203 26.75
12 x 6 323.9 x 159 7 3.5 254 219 49
12 x 8 323.9 x 219.1 7 4.5 254 229 50.4
12 x 10 323.9 x 267 7 5.5 254 241 51.8
14 x 8 368 x 219.1 8 4.5 279 248 72.35
14 x 10 368 x 267 8 5.5 279 257 73.5
14 x 12 368 x 323.9 8 7 279 270 75.7
16 x 10 419.1 x 267 9 5.5 305 283 115.2
16 x 12 419.1 x 323.9 9 7 305 295 117.5
16 x 14 419.1 x 368 9 8 305 305 120.2
18 x 12 457.2 x 323.9 9.5 7 343 321 150
18 x 14 457.2 x 368 9.5 8 343 330 152.35
18 x 16 457.2 x 419.1 9.5 9 343 330 154.25
20 x 14 508 x 368 11 8 381 356 209.65
20 x 16 508 x 419.1 11 9 381 356 212.5
20 x 18 508 x 457.2 11 9.5 381 368 217.8
24 x 8 610 x 419.1 13 9 432 406 307.4
24 x 10 610 x 457.2 13 9.5 432 419 311.6
24 x 12 610 x 508 13 11 432 432 316.1
28 x 10 711 x 457.2 15 9.5 521 470 493.25
28 x 12 711 x 508 15 11 521 483 497.75
28 x 14 711 x 610 15 13 521 508 512.4
32 x 8 813 x 508 17 11 597 533 623.3
32 x 10 813 x 610 17 13 597 559 638.2
32 x 12 813 x 711 17 15 597 572 653.3
36 x 10 914 x 610 19 13 673 610 887
36 x 12 914 x 711 19 15 673 622 901.45
36 x 14 914 x 813 19 17 673 648 924.75
