Copper Nickel - FLANGES

Solid Blind Flange - ISO NP10 / ANSI B16.5 In Copper Nickel

solid blind flange - 10 bar - ISO NP10

solid blind flange - 150 lbs - ANSI B16.5

solid blind flange - 300 lbs - ANSI B16.5

solid blind flange - 10 bar - ISO NP10

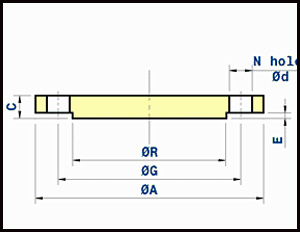

Outside diameter of pipe						Drilling			Theo.
ØD		ØA	C	ØR	E	ØG	N	Ød	weight
nominal inch	actual mm	mm	mm	mm	mm	mm	bolt holes	mm	Kg/piece
0.5	20	95	14	46	2	65	4	14	0.80
0.75	25	105	16	56	2	75	4	14	1.15
1	30	115	16	65	2	85	4	14	1.40
1.25	38	140	18	76	2	100	4	18	2.05
1.5	44.5	150	18	84	3	110	4	18	2.40
2	57	165	20	99	3	125	4	18	3.25
2.5	76.1	185	20	118	3	145	4	18	4.15
3	88.9	200	20	132	3	160	8	18	5.75
4	108	220	22	156	3	180	8	18	7.05
5	133	250	22	184	3	210	8	18	10.10
6	159	285	24	211	3	240	8	22	13.00
7	193.7	315	24	242	3	270	8	22	17.55
8	219.1	340	24	266	3	295	8	22	20.40
10	267	395	26	319	3	350	12	22	29.65
12	323.9	445	26	370	4	400	12	22	37.60
14	368	505	26	429	4	460	16	22	52.45
16	419.1	565	28	480	4	515	16	26	68.40
18	457.2	615	28	530	4	565	20	26	80.95
20	508	670	30	582	4	620	20	26	103.75
24	610	780	34	682	5	725	20	30	149.35

---

»solid blind flange - 150 lbs - ANSI B16.5

Outside diameter of pipe					Drilling			Theo.
ØD		ØA	C	ØR	ØG	N	Ød	weight
nominal inch	actual mm	mm	mm	mm	mm	bolt holes	mm	Kg/piece
0.5	20	88.9	11.1	34.9	60.3	4	15.9	0.90
0.75	25	98.4	12.7	42.9	69.8	4	15.9	1.05
1	30	108.0	14.3	50.8	79.4	4	15.9	1.15
1.25	38	117.5	15.9	63.5	88.9	4	15.9	1.50
1.5	44.5	127.0	17.5	73.0	98.4	4	15.9	1.60
2	57	152.4	19.1	92.1	120.6	4	19	2.05
2.5	76.1	177.8	22.2	104.8	139.7	4	19	3.65
3	88.9	190.5	23.8	127.0	152.4	4	19	4.55
4	108	228.6	23.8	157.2	190.5	8	19	9.10
5	133	254.0	23.8	185.7	215.9	8	22.2	10.25
6	159	279.4	25.4	215.9	241.3	8	22.2	13.70
8	219.1	342.9	28.6	269.9	298.4	8	22.2	22.80
10	267	406.4	30.2	323.8	361.9	12	25.4	36.45
12	323.9	482.6	31.8	381.0	431.8	12	25.4	57.00
14	368	533.4	34.9	425.1	476.2	12	28.6	67.25
16	419.1	596.9	36.5	482.6	539.7	16	28.6	87.80
18	457.2	635.0	39.7	533.4	577.8	16	31.7	108.30
20	508	698.5	42.9	584.2	635.0	20	31.7	140.25
24	610	812.8	47.6	692.1	749.3	20	34.9	212.05

---

» solid blind flange - 300 lbs - ANSI B16.5

Outside diameter of pipe					Drilling			Theo.
ØD		ØA	C	ØR	ØG	N	Ød	weight
nominal inch	actual mm	mm	mm	mm	mm	bolt holes	mm	Kg/piece
0.5	20	95.2	14.3	34.9	66.7	4	15.9	1.15
0.75	25	117.5	15.9	42.9	82.5	4	19	1.70
1	30	123.8	17.5	50.8	88.9	4	19	2.30
1.25	38	133.3	19.0	63.5	98.4	4	19	2.85
1.5	44.5	155.6	20.6	73.0	114.3	4	22.2	3.40
2	57	165.1	22.2	92.1	127.0	8	19	4.00
2.5	76.1	190.5	25.4	104.8	149.2	8	22.2	6.30
3	88.9	209.5	28.6	127.0	168.3	8	22.2	8.00
4	108	254.0	31.8	157.2	200.0	8	22.2	13.70
5	133	279.4	34.9	185.7	234.9	8	22.2	18.25
6	159	317.5	36.5	215.9	269.9	12	22.2	26.20
8	219.1	381.0	41.3	269.9	330.2	12	25.4	41.60
10	267	444.5	47.6	323.8	387.3	16	28.6	65.55
12	323.9	520.7	50.8	381.0	450.8	16	31.7	94.60
14	368	584.2	54.0	425.1	514.3	20	31.7	122.0
16	419.1	647.7	57.2	482.6	571.5	20	34.9	158.45
18	457.2	711.2	60.3	533.4	628.6	24	34.9	201.80
20	508	774.7	63.5	584.2	685.8	24	34.9	254.20
24	610	914.4	69.8	692.1	812.8	24	41.3	389.90
