Copper Nickel - FLANGES

Solid Slip On Flange - DIN 86033 / EEMUA 145 / ANSI B16.5 In Copper Nickel

solid slip on flange - 10 bar - DIN 86033

solid slip on flange - 16&20 bar - EEMUA 145

solid slip on flange - 150 lbs - ANSI B16.5

solid slip on flange - 300 lbs - ANSI B16.5

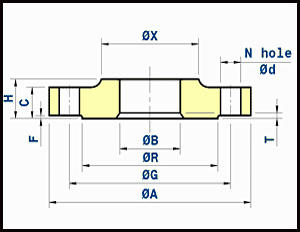

solid slip on flange - 10 bar - DIN 86033

Outside diameter of pipe										Drilling			Theo.
ØD		ØA	H	C	ØX	ØR	ØB	F	T	ØG	N	Ød	weight
nominal inch	actual mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	bolt holes	mm	Kg/piece
0.375	16	90	18	12	26	40	16.20	2		60	4	14	0.52
0.5	20	95	18	12	30	45	20.20	2		65	4	14	0.57
0.75	25	105	18	12	35	58	25.20	2		75	4	14	0.71
1	30	115	18	12	40	68	30.20	2		85	4	14	0.86
1.25	38	140	20	14	49	78	38.25	2		100	4	18	1.47
1.5	44.5	150	20	14	56	88	44.75	3		110	4	18	1.60
2	57	165	22	16	69	102	57.30	3		125	4	18	2.20
2.5	76.1	185	22	16	88	122	76.30	3		145	4	18	2.66
3	88.9	200	24	18	101	138	89.40	3		160	8	18	3.32
4	108	220	28	20	120	158	108.40	5		180	8	18	4.31
5	133	250	28	20	146	188	133.65	5	7	210	8	18	5.37
6	159	285	30	22	172	212	159.65	5	7	240	8	23	6.37
7	193.7	315	32	22	209	242	195.00	5	7	270	8	23	7.22
8	219.1	340	32	24	234	268	220.00	5	7	295	8	23	9.12
10	267	395	34	26	284	320	268.20	6	7	350	12	23	12.10
12	323.9	445	36	26	343	370	325.35	6	7	400	12	23	13.70
14	368	505	38	28	389	430	369.35	6	7	460	16	23	19.30
16	419.1	565	40	28	442	482	420.50	6	7	515	16	27	23.20
18	457.2	615	42	28	482	530	458.50	6	7	565	20	27	27.90
20	508	670	47	31	535	585	509.50	7	8	620	20	27	35.00
24	610	780	49	31	640	685	612.00	8	8	725	20	30	42.90

---

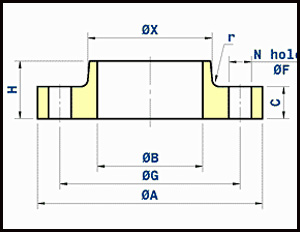

»solid slip on flange - 16&20 bar - EEMUA 145

Outside diameter of pipe								Drilling			Theo.
ØD		ØA	H	C	ØX	ØB	r	ØG	N	Ød	weight
nominal inch	actual mm	mm	mm	mm	mm	mm	mm	mm	bolt holes	mm	Kg/piece
0.5	16	89	20	14	23	16.07	4	60.3	4	15.9	1.15
0.75	25	98	24	16	32	25.08	4	69.8	4	15.9	1.20
1	30	108	24	16	47	30.08	4	79.4	4	15.9	1.30
1.25	38	117	26	17	51	38.10	6	88.9	4	15.9	1.70
1.5	44.5	127	26	20	61	44.60	6	98.4	4	15.9	1.80
2	57	152	28	25	73	57.23	6	120.6	4	19	2.90
2.5	76.1	178	32	27	91	76.33	6	139.7	4	19	4.30
3	88.9	190	34	27	105	89.18	6	152.4	4	19	4.40
4	108	229	40	27	135	108.38	8	190.5	8	19	7.30

---

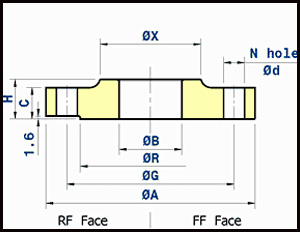

»solid slip on flange - 150 lbs - ANSI B16.5

Outside diameter of pipe								Drilling			Theo.
ØD		ØA	H	C	ØX	ØR	ØB	ØG	N	Ød	weight
nominal inch	actual mm	mm	mm	mm	mm	mm	mm	mm	bolt holes	mm	Kg/piece
0.5	20	88.9	15.9	11.1	30.2	34.9	20.2	60.3	4	15.9	0.90
0.75	25	98.4	15.9	12.7	38.1	42.9	25.2	69.8	4	15.9	1.10
1	30	107.9	17.5	14.3	49.2	50.8	30.2	79.4	4	15.9	1.20
1.25	38	117.5	20.6	15.9	58.7	63.5	38.3	88.9	4	15.9	1.50
1.5	44.5	127.0	22.2	17.5	65.1	73.0	44.8	98.4	4	15.9	1.60
2	57	152.4	25.4	19.1	77.8	92.1	57.4	120.6	4	19.0	2.70
2.5	76.1	177.8	28.6	22.2	90.5	104.8	76.5	139.7	4	19.0	4.10
3	88.9	190.5	30.2	23.8	107.9	127.0	89.4	152.4	4	19.0	4.10
4	108	228.6	33.3	23.8	134.9	157.2	108.5	190.5	8	19.0	7.00
5	133	254.0	36.5	23.8	163.5	185.7	133.8	215.9	8	22.2	8.00
6	159	279.4	39.7	25.4	192.1	215.9	159.8	241.3	8	22.2	9.90
8	219.1	342.9	44.4	28.6	246.1	269.9	220.3	298.4	8	22.2	15.70
10	267	406.4	49.2	30.2	304.8	323.8	268.4	361.9	12	25.4	22.80
12	323.9	482.6	55.6	31.8	365.1	381.0	325.4	431.8	12	25.4	33.90
14	368	533.4	57.1	34.9	400.0	425.1	369.5	476.2	12	28.6	45.00
16	419.1	596.9	63.5	36.5	457.2	482.6	420.5	539.7	16	28.6	49.00
18	457.2	635.0	68.3	39.7	504.8	533.4	458.7	577.8	16	31.7	63.00
20	508	698.5	73.0	42.9	558.8	584.2	509.5	635.0	20	31.7	81.50
24	610	812.8	82.5	47.6	663.6	692.1	611.5	749.3	20	34.9	105.55

---

»solid slip on flange - 300 lbs - ANSI B16.5

Outside diameter of pipe								Drilling			Theo.
ØD		ØA	H	C	ØX	ØR	ØB	ØG	N	Ød	weight
nominal inch	actual mm	mm	mm	mm	mm	mm	mm	mm	bolt holes	mm	Kg/piece
0.5	20	95.2	22.2	14.3	38.1	34.9	20.2	66.7	4	15.9	0.90
0.75	25	117.5	25.4	15.9	47.6	42.9	25.2	82.5	4	19	1.40
1	30	123.8	27.0	17.5	54.0	50.8	30.2	88.9	4	19	1.70
1.25	38	133.3	27.0	19.0	63.5	63.5	38.3	98.4	4	19	2.00
1.5	44.5	155.6	30.2	20.6	69.8	73.0	44.8	114.3	4	22.2	3.00
2	57	165.1	33.3	22.2	84.1	92.1	57.4	127.0	8	19	3.40
2.5	76.1	190.5	38.1	25.4	100.0	104.8	76.5	149.2	8	22.2	5.10
3	88.9	209.5	42.9	28.6	117.5	127.0	89.4	168.3	8	22.2	6.80
4	108	254.0	47.6	31.8	146.0	157.2	108.5	200.0	8	22.2	11.30
5	133	279.4	50.8	34.9	177.8	185.7	133.8	234.9	8	22.2	14.20
6	159	317.5	52.4	36.5	206.4	215.9	159.8	269.9	12	22.2	18.30
8	219.1	381.0	61.9	41.3	260.3	269.9	220.3	330.2	12	25.4	28.20
10	267	444.5	66.7	47.6	320.7	323.8	268.4	387.3	16	28.6	39.50
12	323.9	520.7	73.0	50.8	374.6	381.0	325.4	450.8	16	31.7	57.70
14	368	584.2	76.2	54.0	425.4	425.1	369.5	514.3	20	31.7	80.60
16	419.1	647.7	82.5	57.2	482.6	482.6	420.5	571.5	20	34.9	102.10
18	457.2	711.2	88.9	60.3	533.4	533.4	458.7	628.5	24	34.9	125.20
20	508	774.7	95.2	63.5	587.4	584.2	509.5	685.8	24	34.9	154.70
24	610	914.4	106.4	69.8	701.7	692.1	611.5	812.8	24	41.3	240.65
